Mercedes-Benz W 111 / 112 series (1961-1971)

The Mercedes-Benz 220 SEb coupe (W 111 and 112 series, 1961 – 1971) was modeled on the fintail sedans.

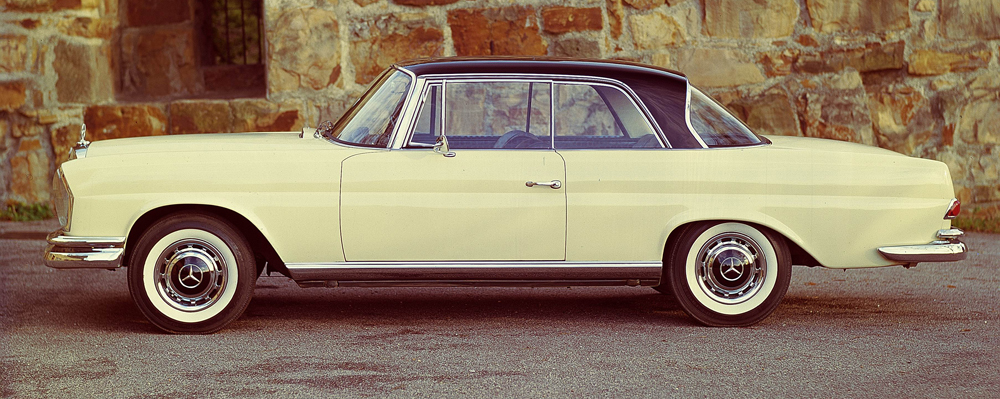

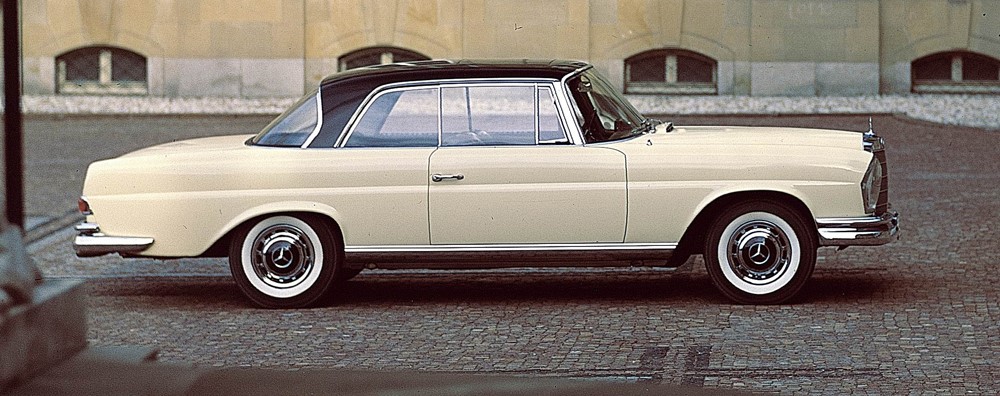

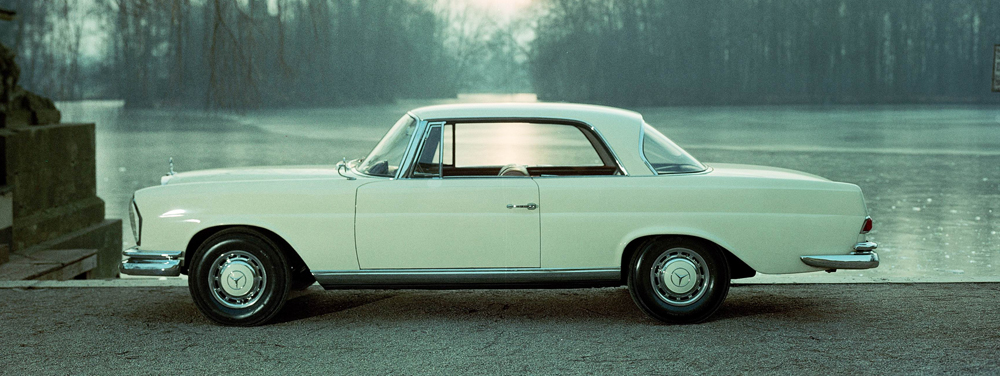

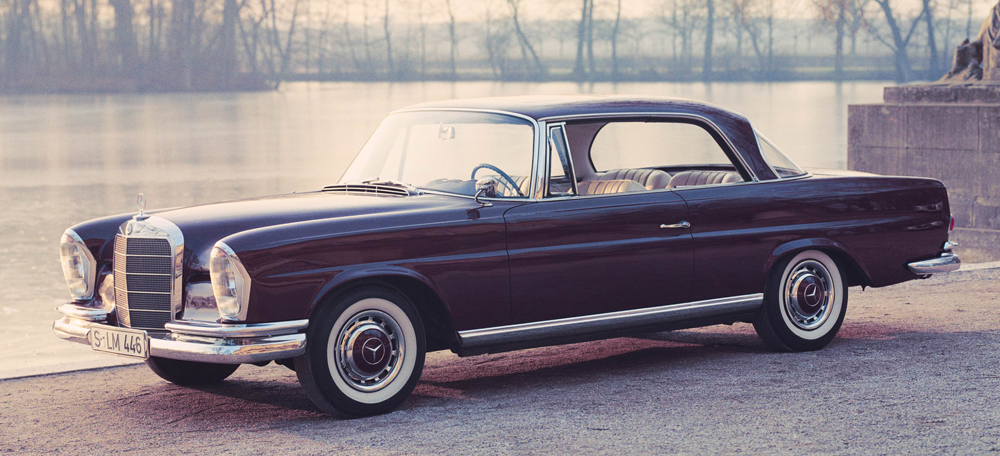

Within the framework of the inauguration of the Daimler-Benz Museum in Untertürkheim on February 24, 1961, the new Mercedes-Benz 220 SEb Coupé was launched. The elegant and representative new design was the successor to the 128-series Coupé production of which had been discontinued as early as October 1960. In terms of its engineering and styling, the new car was modelled on the 220 SEb Saloon presented in August 1959 and likewise allocated to the 111 series.

Unlike its predecessor, the Coupé was based on the full-length frame/floor unit of the Saloon and was therefore a fully-fledged four-seater. Although the fintails – which caused quite a stir when the 220b and 220 SEb were presented – were only rudimentary on the new Coupé, both Coupé and Saloon had numerous stylistic features in common. It is therefore all the more surprising that the Coupé did not share a single body-in-white part with the four-door model.

Engine and chassis were adopted from the Saloon without any modifications worth mentioning. The only significant difference was also a technical titbit: the 220 SEb Coupé was the first Mercedes-Benz production car equipped with disc brakes on the front wheels.

In August 1961, a Cabriolet variant of the 220 SEb was introduced, corresponding in all its details to the Coupé with the exception of the soft-top and the required bodywork reinforcements.

Additional model with three-litre engine

Six months later, the 300 SE Coupé and 300 SE Cabriolet made their debut at the Geneva Motor Show – created, in a way, from parts from a modular kit. The bodywork of the related 220 SEb variants were fitted with additional trim and combined with the engineering of the 300 SE. Accordingly, the new exclusive models – allocated to the 112 series like the basic Saloon – were equipped with a whole series of special technical features. The standard specifications included a light-alloy engine with a displacement of three litres, a four-speed automatic transmission, power steering, air suspension and a dual-circuit brake system with disc brakes on the front and rear wheels. The additional chrome trim consisted of a chrome strip running in the longitudinal groove from the headlamps all the way to the rear lights, as well as of distinctive trim strips on the front and rear wheelarches.

A brochure of 1953 commented on the design: “From whichever angle one looks at this car, one is always struck by its racy elegance and aesthetic balance of stylistic elements. It is its superior appearance – forward-looking, yet without a hint of fashionable gimmickry – which holds the observer in its thrall.”

From March 1963, the 300 SE Coupé and Cabriolet as well as the Saloon became optionally available with a four-speed manual transmission, reducing the list price by 1,400 Deutschmarks. In January 1964, engine output was raised to 125 kW, resulting in improved performance. This increase in output was made possible by replacing the injection system by a six-plunger injection pump.

A one-off unit for the Chief Engineer

A special one-off version of the 300 SE Coupé was set up in the test department in 1962. The rear end of the roof with the rear screen was removed and replaced by a recessible folding top. The result of this modification was a landaulet which was driven by chief engineer Fritz Nallinger for several years. Unfortunately, nothing is known about the subsequent fate and whereabouts of this interesting one-off car.

When the 220 Sb, 220 SEb and 300 SE fintail Saloons were replaced by a newly designed generation of models in August 1965, the Coupé and Cabriolet versions remained in the sales range for the time being. These exclusive models, which had been in production for four years at the time, were far from looking outdated alongside the new-generation Saloons, so that an expensive stylistic refinement or even a new development of the small-series versions was not necessary. The brochure promised this: “You will see for yourself that Mercedes-Benz passenger cars will give back to you something that has become extremely rare in today’s road traffic: your freedom and composure.”

Several new features introduced with the new Saloons were also incorporated in the Coupés and Cabriolets. The two 2.2-litre models were given the 110 kW 2.5-litre engine of the 250 SE and the corresponding model designation. Like the three-litre models, they were also equipped with the larger wheels (diameter: 35.5 centimetres) and the larger disc brakes of the 108 luxury series. Another new feature was the hydropneumatic compensating spring on the rear axle, fitted in place of the previous coil spring in the 2.5-litre models and keeping the car at a constant level irrespective of the load in the car.

In January 1968, the 280 SE made its debut, succeeding the 250 SE with a newly developed 2.8-litre six-cylinder engine with 118 kW. This change of generation affected both the Saloon and the two two-door versions. With the exception of the new engine, only detail modifications were made on the Coupé and Cabriolet: like the Saloon, both models were given flatter, undivided wheel embellishers with integrated hub caps. Production of the 300 SE Coupé and Cabriolet was discontinued at the same time as that of the 2.5-litre models. A direct successor was not planned for the time being but wasn’t really necessary, either, as the 2.8-litre engine developed only a little less output (7.4 kW) but had a comparable performance on account of its considerably reduced weight.

All-new V8 engine

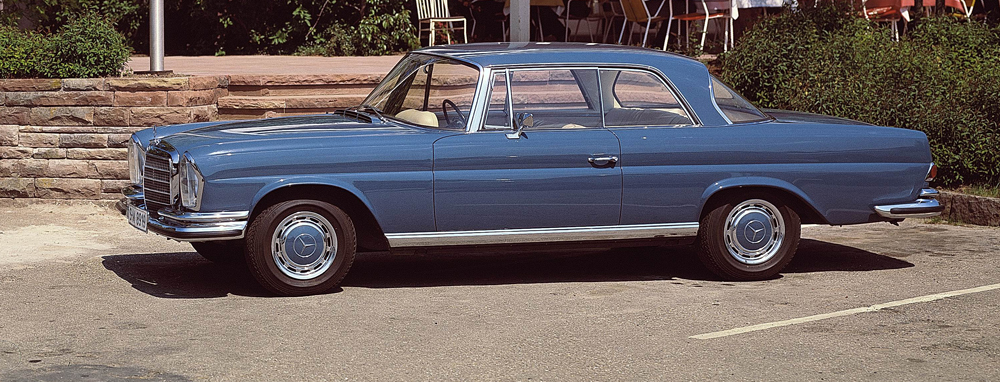

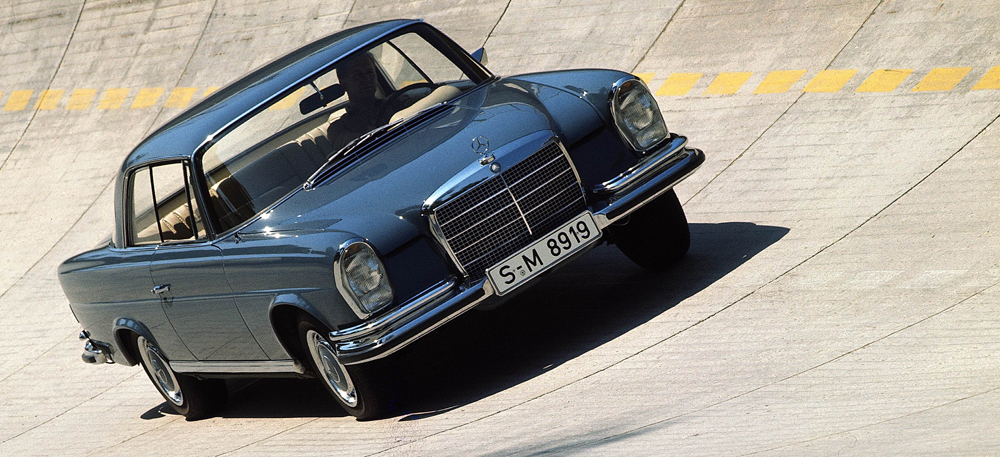

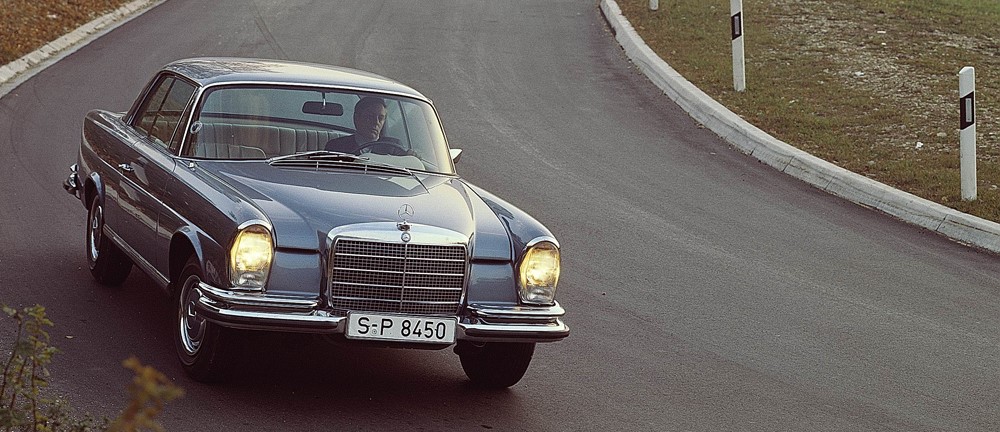

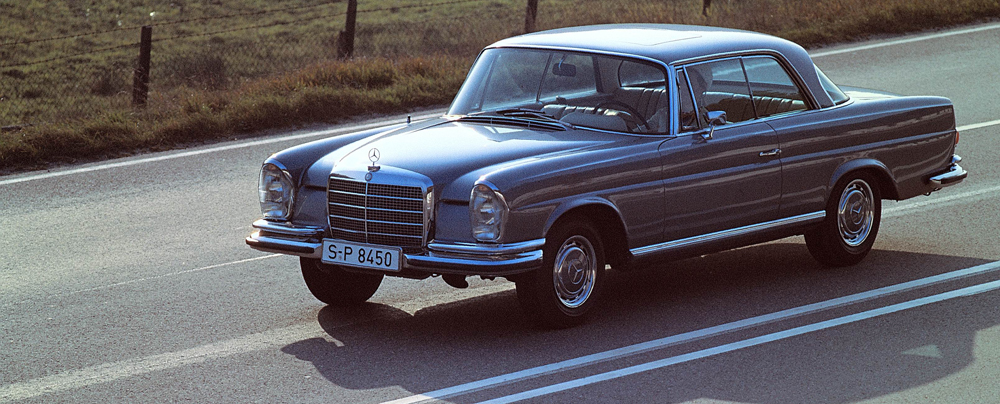

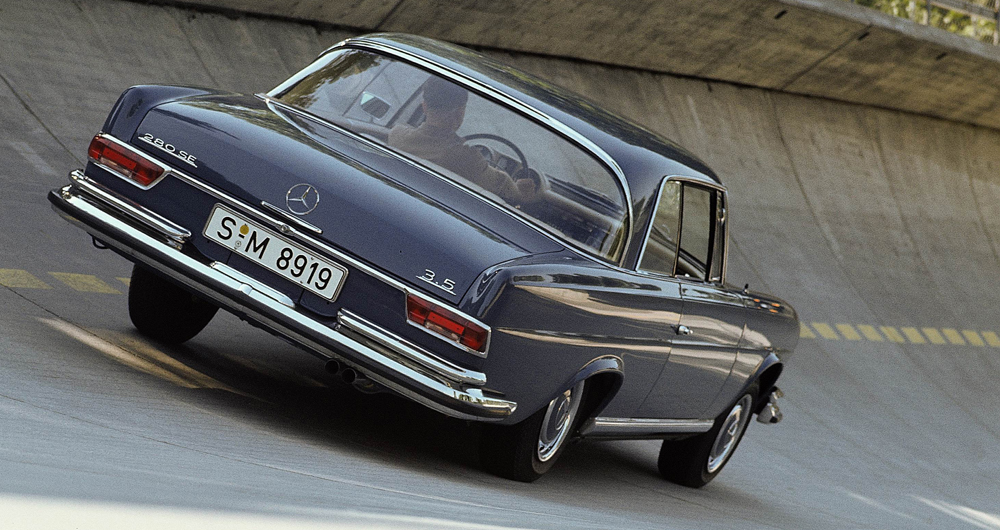

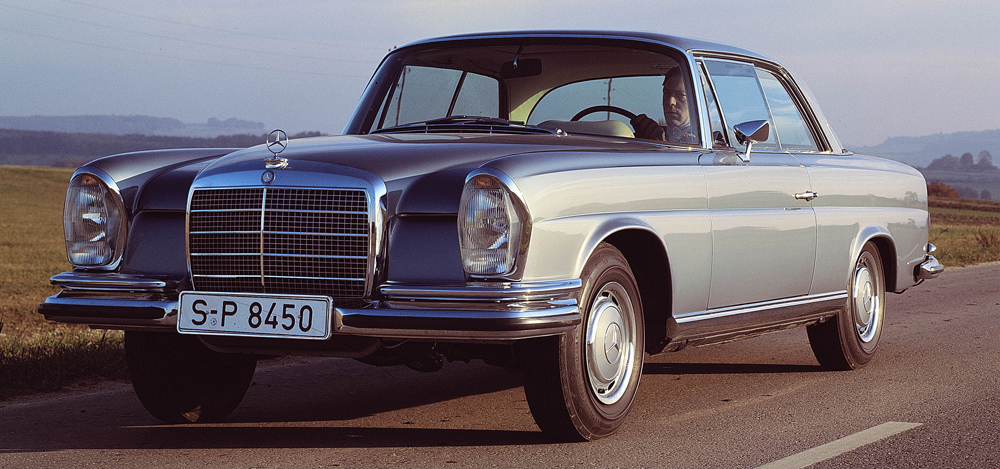

In September 1969, clearly more powerful versions of the 280 SE 3.5 Coupé and Cabriolet were introduced. The completely newly developed 3.5-litre V8 engine with an output of 147 kW excelled in particularly smooth running characteristics and gave the car a sports-car-like performance. The new models had been stylistically refined to a certain extent, like the versions with 2.8-litre six-cylinder engines which continued to be on sale: the radiator mask was lower and wider, with a correspondingly flatter front end of the engine hood. Due to this characteristic feature, the face-lifted Coupés and Cabriolets were often referred to as the “flat radiator” models by insiders. As on the Saloons, the bumpers of the Coupés and Cabriolets were now fitted with rubber strips. In purely visual terms, the eight-cylinder models did not differ from the face-lifted six-cylinder versions.

Production of the six-cylinder Coupés and Cabriolets was discontinued in May 1971. When production of the eight-cylinder models ceased two months later, the era of the Coupés and Cabriolets from the 111 and 112 series came to an end after more than ten years. In the Sindelfingen plant, 28,918 Coupés and 7,013 Cabriolets had been produced. The highest production volume within the model family had been reached by the 220 SEb Coupé with 14,173 units.

There were no direct successors to the Coupés from the W 111 and 112 series. Instead, Mercedes-Benz offered Coupés from the C 107 series, whose engineering was based on that of the SL, between 1971 and 1981.
